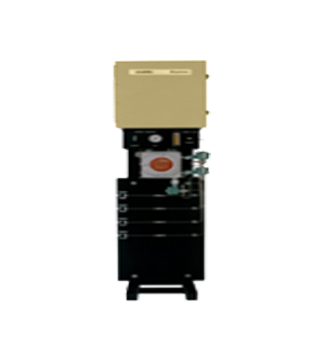

The Daniel's advanced supersonic flowmeter with a Mark III e unit is designed for high precision measurement of the natural gas trade handover, which ensures long-term stability and high precision measurement. This advanced four channel flowmeter has high precision and linearity throughout the range of measurement range, which helps the users to reduce the loss caused by inaccurate measurement.

Typical application of L

L Trade Measurement

L natural gas power plant

L large industrial users

L City Gate Station

L natural gas mining

L underground gas storage

L offshore platform

L characteristics and advantages

L four channel design ensures accuracy, stability and repeatability, and saves operation cost.

L has been running steadily for a long time, which greatly reduces the maintenance cost.

L high range ratio > 100:1, small diameter pipeline can be selected, and overall investment is lower.

The L random CUI (user - Ultrasonic software) provides a Windows - based interface that is easy to operate, reduces the time for new instrument debugging, and simplifies the routine maintenance process.

The L Mark III electronic unit provides rapid sampling and data output, an extensible electronic platform, easy to use, and archived data records * (options) to implement the diagnosis, alarm, and reading of records per hour and every day.

The casting structure of L machine is not sensitive to pressure change, so it will not affect the measurement uncertainty.

L sensor is easy to take out and easy to check

Instrument performance

The calibration accuracy of L is 0.1% (relative to laboratory).

The absolute accuracy of L is 0.3% (including laboratory uncertainty).

When the L velocity is 1.5~30 M / s, the repeatability is + 0.05%

L flow rate can reach 30 m / sec, and the maximum can reach and exceed 38.1 M / sec.

Performance requirements for L symbol merging over AGA 9 report

L ultrasonic working principle:

The SeniorSonic advanced ultrasonic gas flowmeter is used to measure the transmission time of ultrasonic pulses passing through gas in 4 parallel measuring channels. Daniel carefully selected the location of four measurement channels to optimize the accuracy of measurement. Each measurement channel has 2 ultrasonic sensors, alternately as the transmitting and receiving device of the ultrasonic signal, and accurately measuring the transmission time of ultrasonic wave in the current and countercurrent.

The difference between ultrasonic transmission time and downstream flow velocity is proportional to the velocity of natural gas.

L product certification

Metrology certification

The Daniel SeniorSonic flowmeter has been certified by many metrology institutions around the world, including the Chinese Academy of Metrology (NIM), the Holland Metrology Institute (NMi), PTB, GOST, the Canadian Metrology Institute (Measurement Canada) and so on.

Safety grade

In line with the United States and Canada - UL standard, 1 grade 1 group D (UL E152246)

L comply with CE standard ATEX procedures (94/9/EC)

According to Eex D IA - T4 standard and EN50014, EN50018 and EN50020
